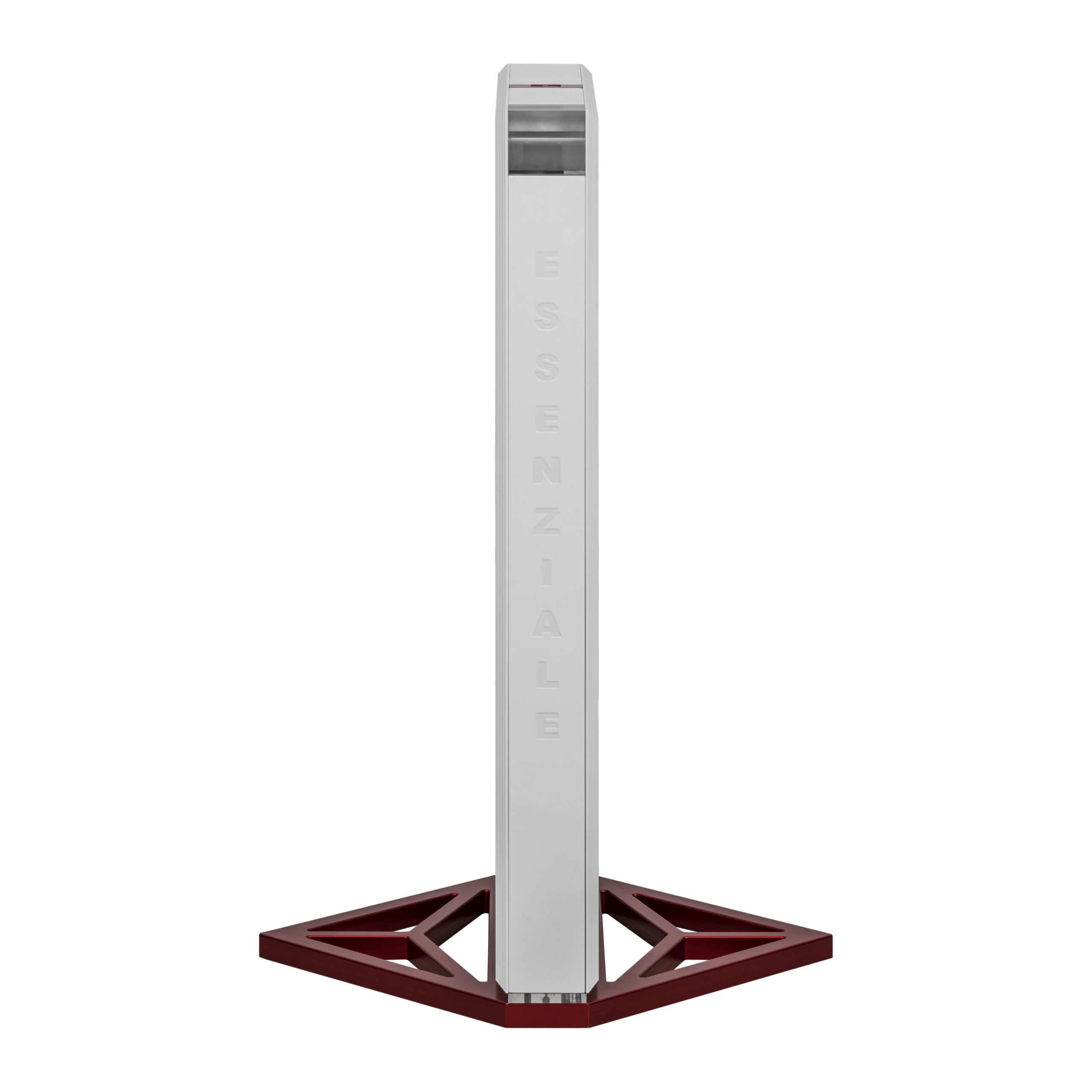

Omega Audio Concepts All In One ESSENZIALE built-in DAC and Amplifier

Technical characteristics

• Made from a single piece of solid CNC machined aluminium, weighing 60kg.
• All internal parts are RFI and EMI isolated from each other.
• Transformers mechanically isolated from the chassis.
• Internal connection system made with the patented ELEMENTS conductors of the NANO Extra series.

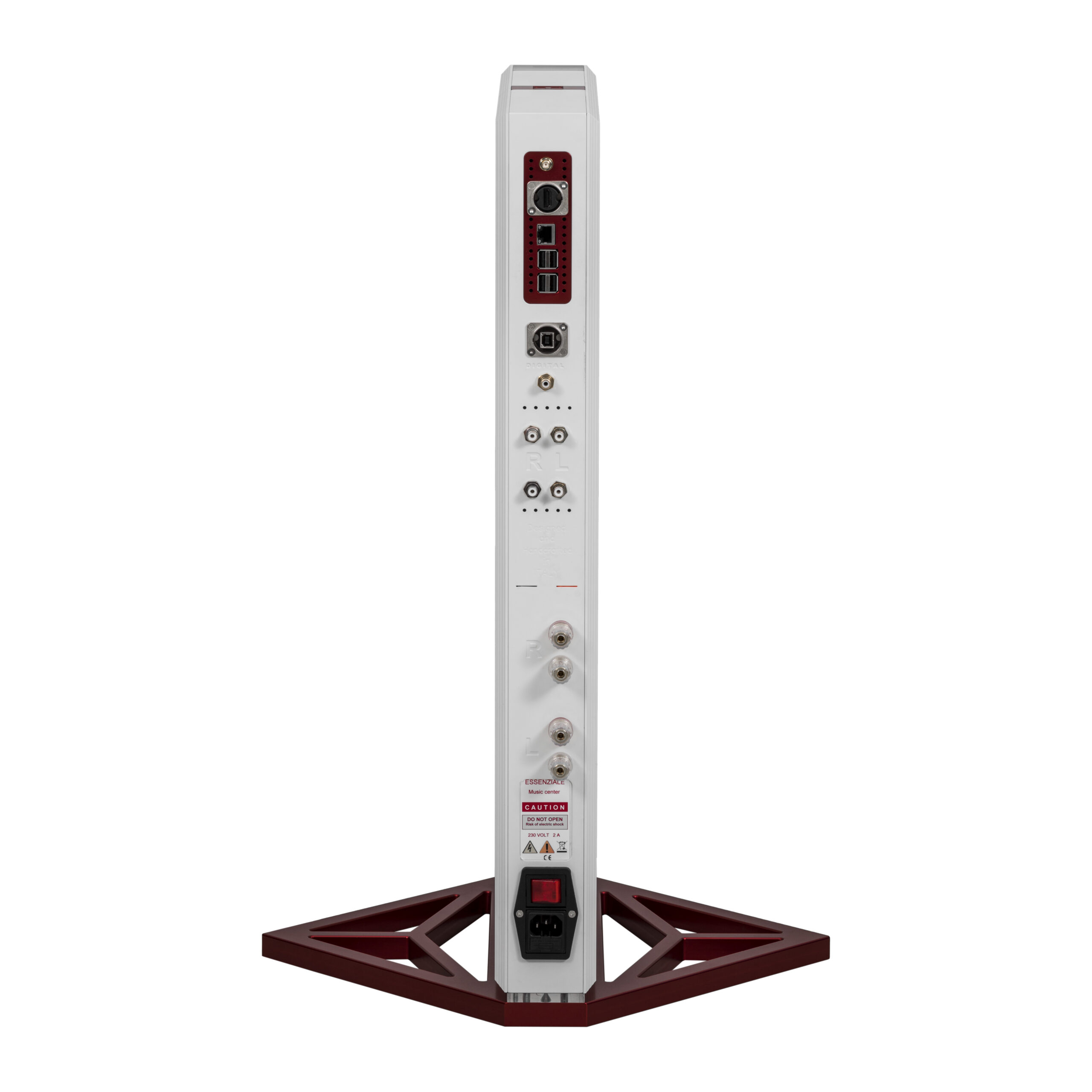

• Integrated with 24/192 USB receiver with 3 inputs and Bluetooth connectivity to connect to smartphones, tablets, computers and Wi-Fi devices.
• S/PDIF digital input for connecting a separate CD player.
• Signal-to-noise ratio of 120dB.
• Signal circuit completely separated from the power supply circuit.
• SMD components with 0.1% tolerance for resistors and capacitors.
• Digital volume control with 0.5dB steps and a single resistor in the signal path.
• Two high-level inputs with RCA connectors.
• Input impedance of 10Kohm.
• Power of 50W into 8ohm, 85W into 4ohm.
• 100dB signal to noise ratio.
• Volume control via Android app with included tablet, connected to the amplifiers via low energy Bluetooth.
• The arrangement of the elements in the cabinet has been designed to keep the power transformers as far away from the circuits as possible, but at the same time keep the internal connections as short as possible.
• Dimensions of 80x400x720mm (WxDxH, the width reaches 400mm including the base).
• Maximum power absorption of 200W.
• Equipped with 10 separate transformers with high-speed power circuits, according to the design principles of OMEGA AUDIO CONCEPTS, so each circuit has its own separate and dedicated power supply
