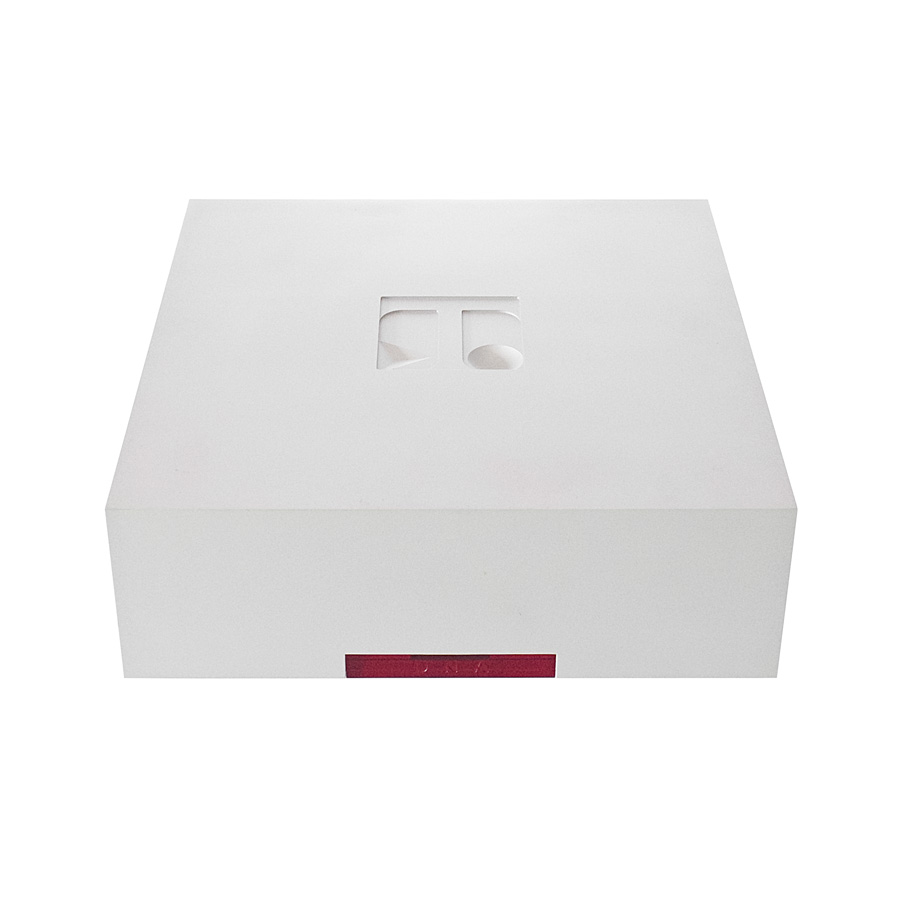

Omega Audio Concepts MONO DNA 100W Integrated Amplifier

Omega Audio Concepts MONO DNA 100w Integrated Amplifier.

Another beauty from Omega.

Integrated mono amplifier with four aluminum frames carved from solid with CNC machines: two for the separate independent power supplies, STARTING FROM THE INDIVIDUAL TRANSFORMERS and two for the amplifications.

It is the first amplifier made in-house by OAC, it represents the milestone, and as its name suggests, it contains all the fundamental concepts of our design. Elegant and minimal in its design, it fits perfectly into any environment. It is available in gray, black and titanium. Customized paint jobs are available upon request and at an additional cost.

The interconnections are NANO extra as standard with the possibility of upgrading to The ELEMENT connections.

AMPLIFICATION UNIT 1 module right channel 1 module left channel

• Cabinet made from solid aluminum, machined using CNC technology.
• Analog signal ground separated from power supply circuit ground
• SMD components with a tolerance of 0.1% for resistors and capacitors in the preamplification and amplification stages.
• No series capacitors in the signal path. Be careful not to connect the audio source with continuous output voltage higher or lower than 10 mV.
• Internal and external connection system made with patented ELEMENTS conductors from OMEGA AUDIO CONCEPTS
• Digital volume control with a single resistor in the signal path in 0.5 dB steps.
• Three high-level inputs with RCA connectors.
• Input impedance 10 kohm
• Power: 100W into 8 ohms, 170W into 4 ohms.
• Signal/noise ratio: 100 dB
• Volume control and input selector system with a remote control included, featuring a low-energy Bluetooth app for Android.
• Dimensions: 255 x 255 x 90 mm (W x D x H)
• Weight: 11.5 Kg. + 11,5 Kg.
