Omega Audio Concepts STREAM POWER 200W Power Amplifier

Omega Audio Concepts STREAM POWER Power Amplifier.

Their top of the line, current state-of-art flagship amplifier.

Just look at the specks of this …

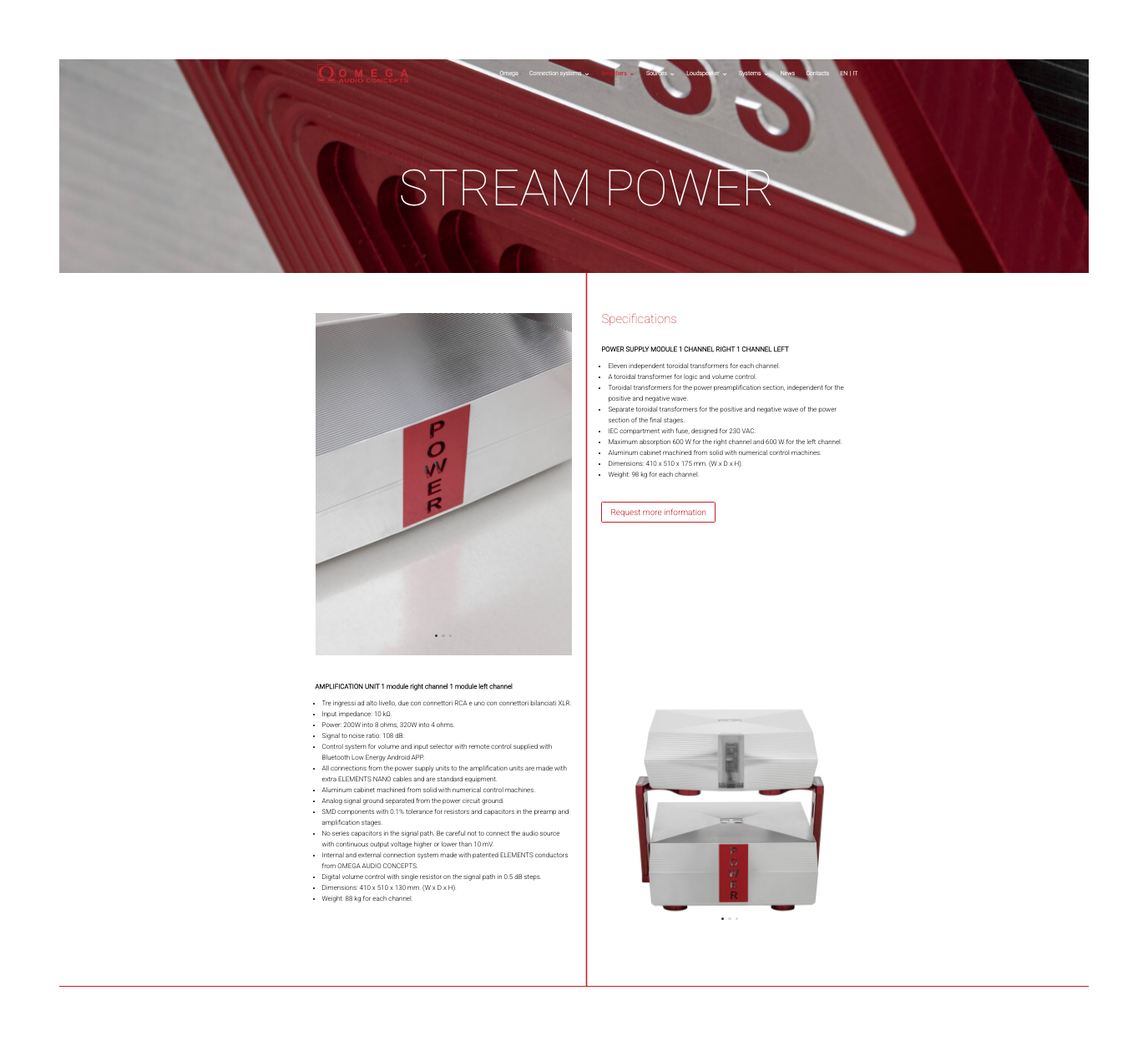

STREAM POWER Amplifier

It is the amplifier that represents our state of the art. In fact there are eleven independent power supplies starting from the transformers.

The power supply of a single channel weighs a hundred kilos. It is composed of four aluminum frames carved from solid with CNC machines and supported by a decoupling and self-supporting structure.

It is available in gray, black and titanium. On request and with an additional price, customized paint jobs are made.

Specifications

AMPLIFICATION UNIT 1 module right channel 1 module left channel

Three inputs of the highest level, that’s two RCA connections and e one balanced XLR.
Input impedance: 10 kΩ.
Power: 200W into 8 ohms, 320W into 4 ohms.
Signal to noise ratio: 108 dB.
Control system for volume and input selector with remote control supplied with Bluetooth Low Energy Android APP.
All connections from the power supply units to the amplification units are made with extra ELEMENTS NANO cables and are standard equipment.
Aluminum cabinet machined from solid with numerical control machines.
Analog signal ground separated from the power circuit ground.
SMD components with 0.1% tolerance for resistors and capacitors in the preamp and amplification stages.
No series capacitors in the signal path. Be careful not to connect the audio source with continuous output voltage higher or lower than 10 mV.
Internal and external connection system made with patented ELEMENTS conductors from OMEGA AUDIO CONCEPTS.
Digital volume control with single resistor on the signal path in 0.5 dB steps.
Dimensions: 410 x 510 x 130 mm. (W x D x H).
Weight: 88 kg for each channel.

POWER SUPPLY MODULE 1 CHANNEL RIGHT 1 CHANNEL LEFT

Eleven independent toroidal transformers for each channel.

A toroidal transformer for logic and volume control.
Toroidal transformers for the power preamplification section, independent for the positive and negative wave.
Separate toroidal transformers for the positive and negative wave of the power section of the final stages.
IEC compartment with fuse, designed for 230 VAC.
Maximum absorption 600 W for the right channel and 600 W for the left channel.
Aluminum cabinet machined from solid with numerical control machines.
Dimensions: 410 x 510 x 175 mm. (W x D x H).
Weight: 98 kg for each channel.

ALSO AVAILABLE WITH THE ELEMENT CABLES UPGRADE: please add £50000

£150,000.00
